Brand:Siemens
Manufacturer Series:LOGO!
Number of Inputs:2
For Use With:LOGO! 8 LOGO! 8.2
Supply Voltage:12 → 24 V dc
Input Type:Analogue
Maximum Operating Temperature:+55°C
Mounting Type:DIN Rail
Dimensions:90 x 35.5 x 58 mm
Standards Met:CE CSA FM
Number of Analogue Inputs:2
Minimum Operating Temperature:0°C
Programming Interface:Computer
Depth:58mm
Length:90mm
Width:35.5mm

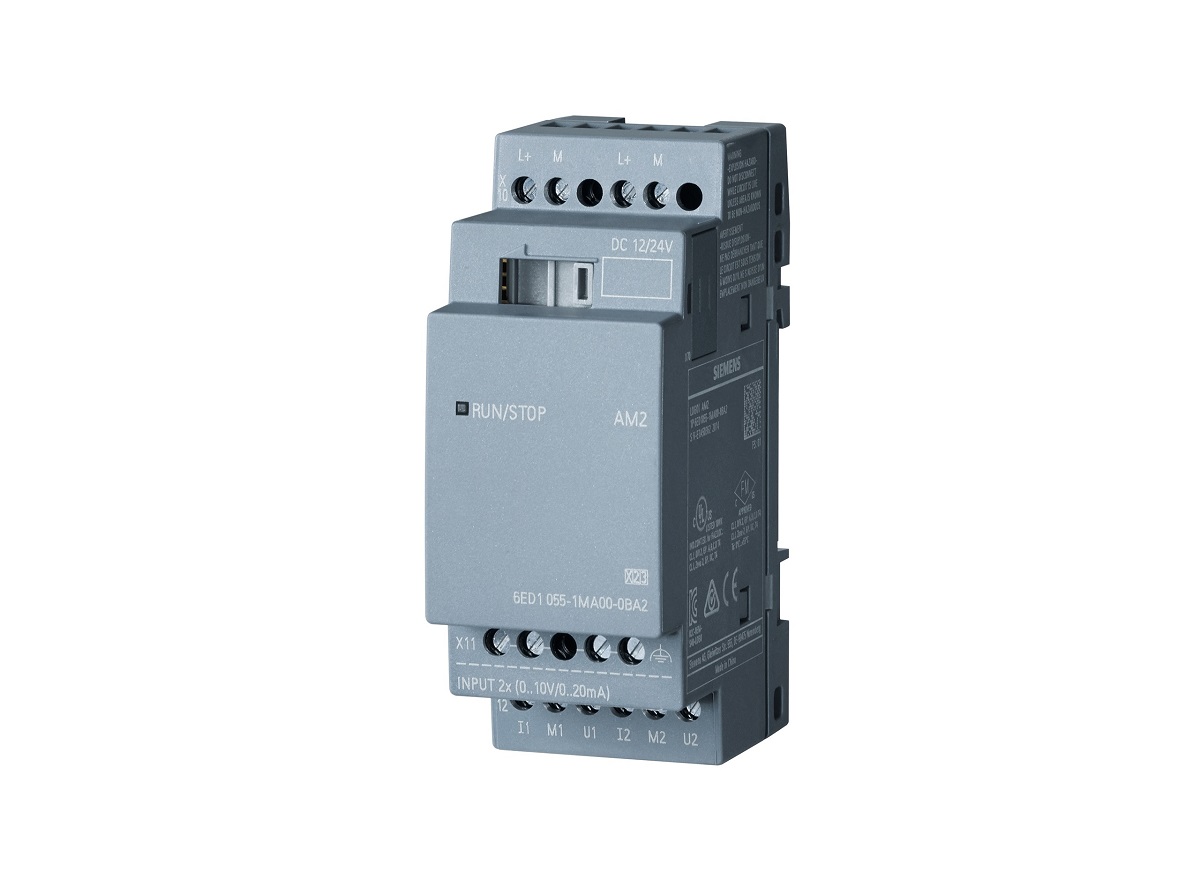

Siemens IO Module For Use With LOGO! 8 and LOGO! 8.2 Series, Analogue, 12 to 24V DC Voltage Rating – 6ED1055-1MA00-0BA2
Achieve close control over your machines with this PLC IO module from Siemens. By converting analogue inputs into readable information for your controller, it lets you use sensors and measuring equipment in your automated system. Two integrated ports mean the device supports two analogue appliances at once, so you can build an effective control setup. Thanks to a 12 to 24V DC voltage rating, it’s compatible with common electrical supplies. An IP20 rating supports user safety through protection from solid objects larger than 12mm, including fingers. You can mount this module on a standard DIN rail mounting, making installation quick and easy.
• Narrow dimensions of 35.5 (width) x 90 (height) x 58mm (depth) to easily fit into busy systems
• Working temperature range between 0°C and +55°C to perform in demanding industrial settings
• Low current consumption of up to 20mA per input minimises power usage
Can I use this input module with temperature sensors?
No, you can’t, as they use special PT1001000 inputs. If you need to use temperature sensors with your PLC, you should choose a suitable Siemens IO module (825-1697).
